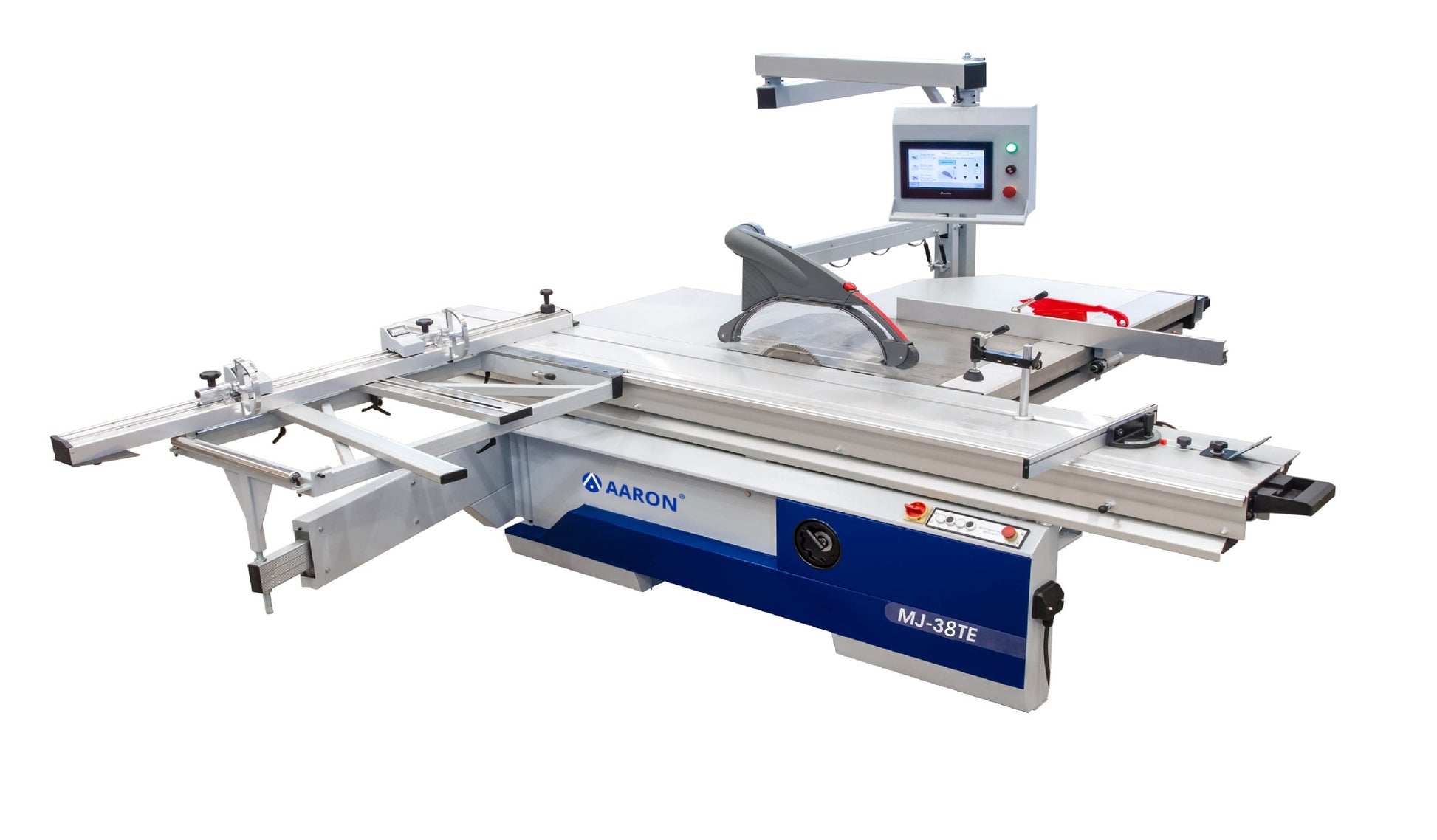

The Aaron MJ-38TE is a 3.8m digital precision panel saw with a touch-screen control interface.
| Dimension of sliding table | 3800 x 405 mm |
|---|---|
| Gross cut capacity | 3800 mm |
| Tilting saw blade | 90°-45° |
| Tilting mechanism | Electronically controlled |
| Maximum height of cut | 120mm(90°) 75mm(45°) |
|
Maximum main saw blade size |
400*30mm |
| Scoring saw diameter | 120*20mm |
| Main saw power/Scoring saw power |
5.5 kW + 1.1 kW (7.37 HP + 1.47 HP) |
| Speed of main saw spindle | 3000/4000/5000rpm |
| Speed of Scoring saw blade | 9000rpm |
| Net weight/Gross weight | 1000/1100kg |
| Table height | 880mm |
