CNC Nesting Machines

Upgrade your production with high-performance woodworking CNC nesting router machines engineered for precision, speed, and efficiency in flat-panel processing. Ideal for Australian cabinetmakers, joiners, and commercial workshop operations, our CNC nesting solutions streamline your workflow—from automated cutting to optimised material yield.

At Arborwood Machinery, we offer a range of CNC nesting machines designed to handle MDF, particleboard, plywood, and other flat-panel materials with ease. Whether you're scaling up for batch production or improving one-off job flexibility, our machines combine intelligent nesting software, robust Italian spindles, and Australian-certified components for dependable day-in, day-out performance.

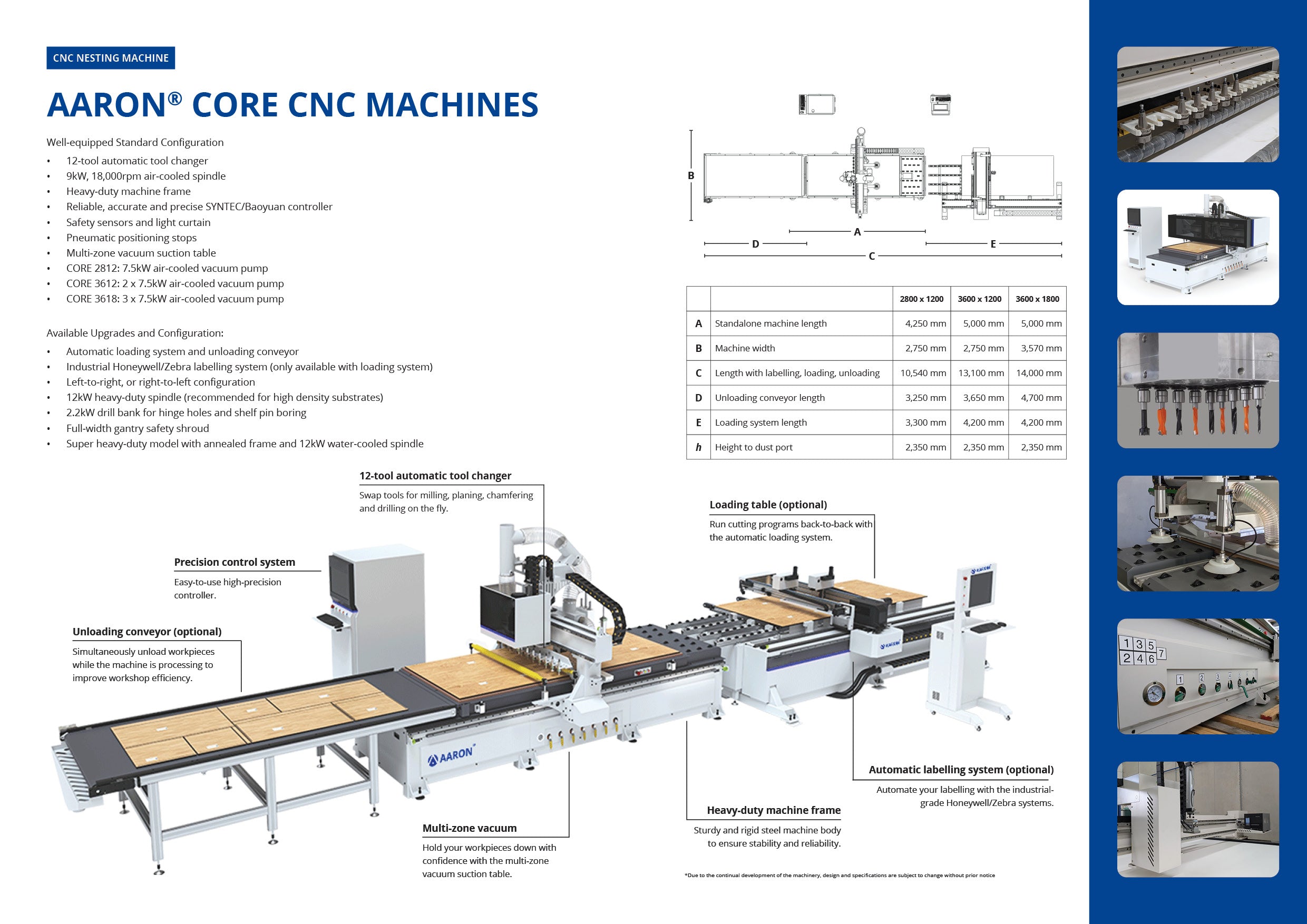

CORE CNC Machine Features

  • CORE CNC Machine Range

    • Automatic tool changing
    • 12-tool magazine
    • 9 kW, 18,000 rpm air-cooled spindle
    • Heavy-duty servo motors
    • 7.5 kW vacuum pumps (x1 for 2812, x2 for 3612, x3 for 3618)
    • Up to 25 m/min feed speed
    • Up to 60 m/min idle speed
    • SYNTEC/Baoyuan controller
    • Safety sensors and light curtain
    • Automatic lubrication

    Available Sizes

    • 2800 mm x 1200 mm
    • 3600 mm x 1200 mm
    • 3600 mm x 1800 mm
    • Custom sizes by request

  • Optional Upgrades

    • Automatic loading and unloading system
    • Honeywell/Zebra industrial automatic labelling system
    • 2.2 kW drilling bank
    • Left-to-right / right-to-left configuration
    • 12 kW heavy-duty spindle (for high density substrates)
    • Full-width gantry shroud
    • Super heavy-duty model with annealed steel frame and 12 kW water-cooled spindle

2800 x 1200 CORE CNC (Pricing incl. GST)

3600 x 1200 CORE CNC (Pricing incl. GST)

3600 x 1800 CORE CNC (Pricing incl. GST)
