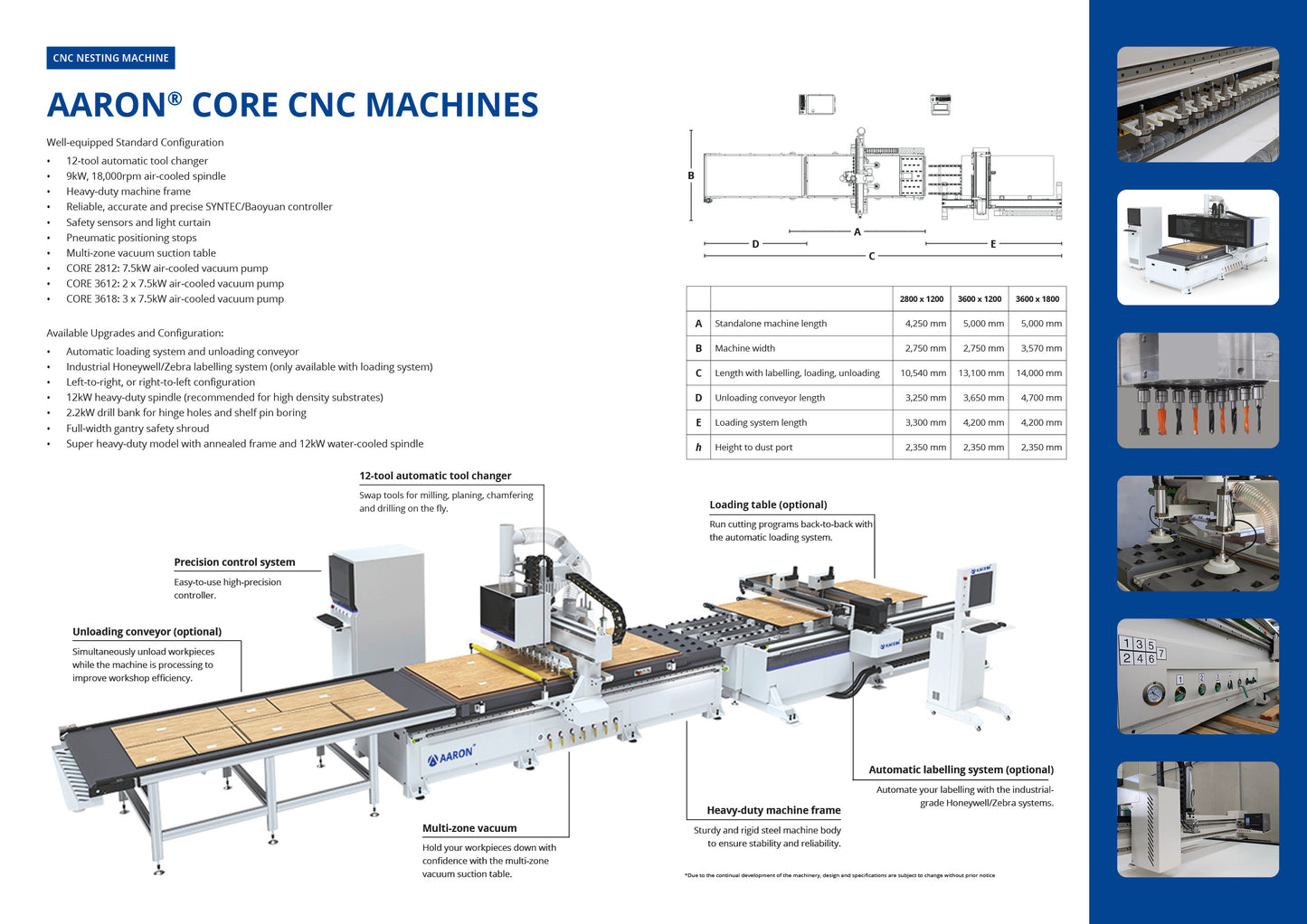

Aaron CORE 2800 x 1200 Standalone CNC Nesting Machine

AARON® CNC Machines are specifically specced for the Australian market. As with all machines that we source and manufacture, our emphasis is on:

• Precision while being heavy-duty
• Affordability
• Quality components
• Ease of serviceability

Equipped powerful spindles, precise guide rails, automatic tool changing and safety devices as standard, you can be rest assured that even our base models are built to last.
To enhance your productivity further, consider our optional Loading Table and Unloading Conveyor (L/UL System) and automatic labelling system.

Contact us to find out more or place an order.

Machines are configured to order based on your requirements.

Available Working Sizes:

• 2800 mm x 1200 mm

• 3600 mm x 1200 mm
• 3600 mm x 1800 mm
• Custom sizes by request

Optional Upgrades:

• Loading and unloading system (Load entire stacks and simplify offloading workflows with the loading lift device and unloading conveyor belt systems)
• Automatic labelling system over loading table
• 12 kW heavy-duty spindle (recommended for high-density substrates)
• 2.2 kW drill bank for quick shelf pin boring and hinge holes
• Full-width gantry shroud
• Super-heavy duty model with annealed frame and water-cooled spindle

The Aaron CORE CNC Range has the following features:

• 12-Tool Linear Automatic Tool-Changer (ATC) attached to gantry for faster tool changes
• 9 kW, 18,000 rpm air-cooled spindle

• Safety light curtain fences
• 7.5 kW vacuum pump
• Up to 25 m/min feed speed
• Up to 60 m/min idle speed

• Multi-zone vacuum table
• High performance inverter, anti-strong interference, energy saving and environmental protection
• Thousandth grade high precision tool setting device, stable cutting and continuous improvement
• World-renowned Baoyuan / SYNTEC high-performance controller system
