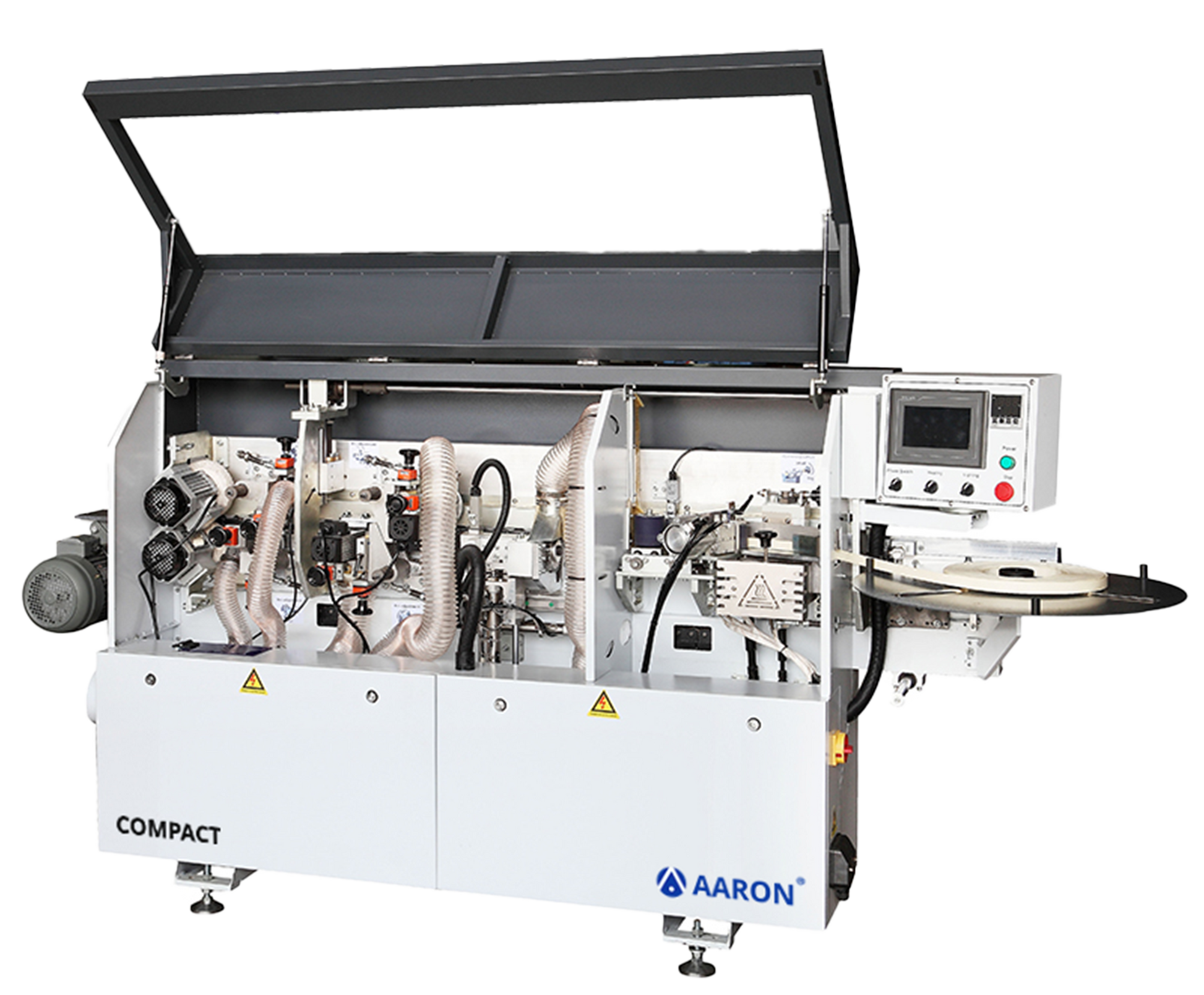

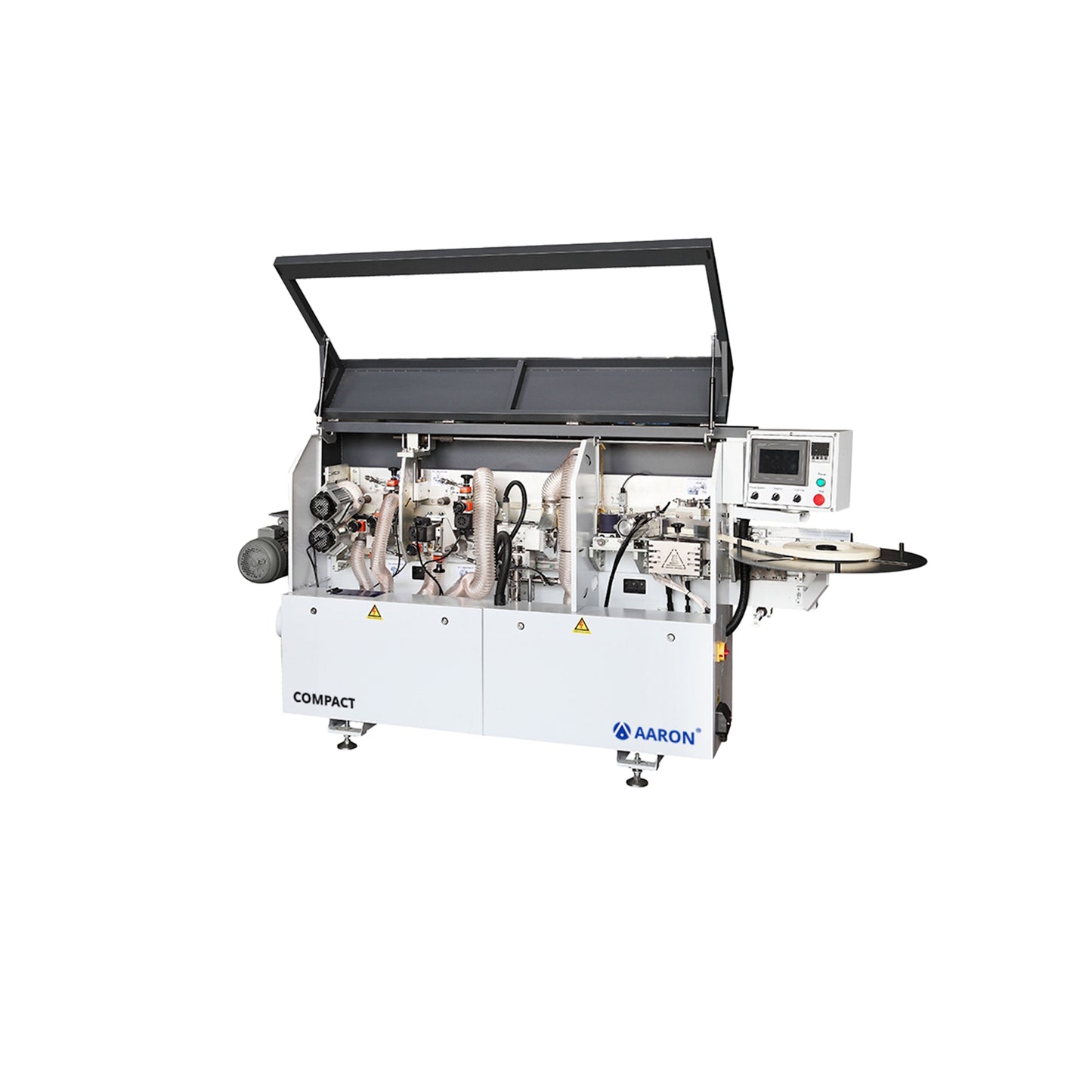

Aaron COMPACT Edgebander - Automatic Standard Edge Banding Machine
Aaron COMPACT Edgebander - Automatic Standard Edge Banding Machine
Regular price
$18,150.00 AUD
Regular price
Sale price
$18,150.00 AUD
Unit price
per
Taxes included.
Shipping calculated at checkout.
With a length of less than 2.5 metres, this solid and compact edgebander is perfect for Aussie workshops where space is a premium.
Need something with pre-milling and corner rounding, See the Compact Pro Edgebander.
COMPACT Functions

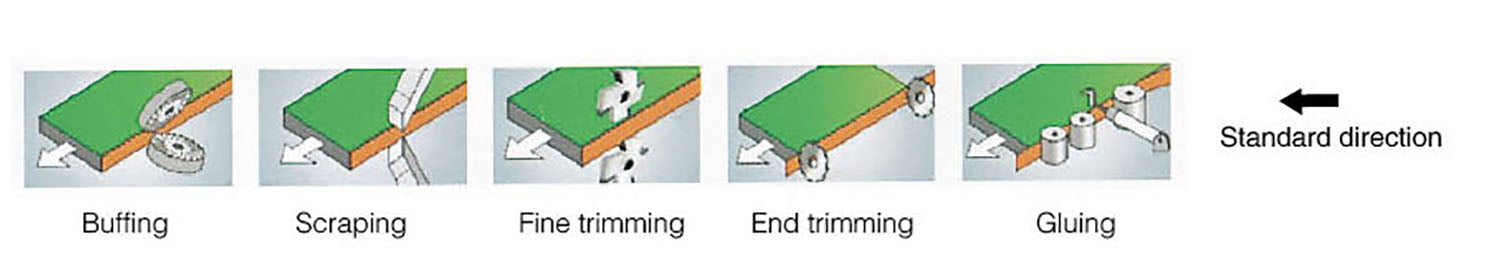

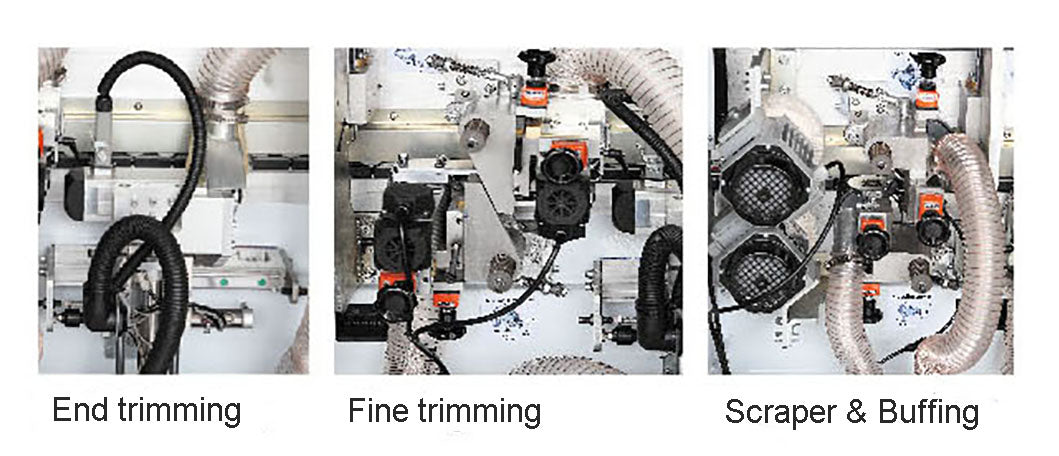

Gluing - End cutting - Fine trimming - Scraping - Buffing
- High-frequency motors equipped throughout, in line with our heavy-duty ALIGN series, offering *greater stability, reliability and productivity. (*compared to edgebanders with light-duty router-like trimmers)
- 9 metres/min feed speed
- Intuitive industrial touch-screen interface
- Made in China to our strict specifications
Technical Data
| Edge thickness | 0.4–3.0 mm | Min panel width | 120 mm |
| Working voltage | 3-Phase 415V / Single Phase 230V | Min panel length | 150 mm |
| Air pressure | >0.6 MPa | Panel thickness | 10–50 mm |
| Feeding speed | 9 m/min | Total power | 6.5 kW |
| Overall dimensions | 2450(L)×536(W)×1316(H) mm | Net weight | 500 kg |
