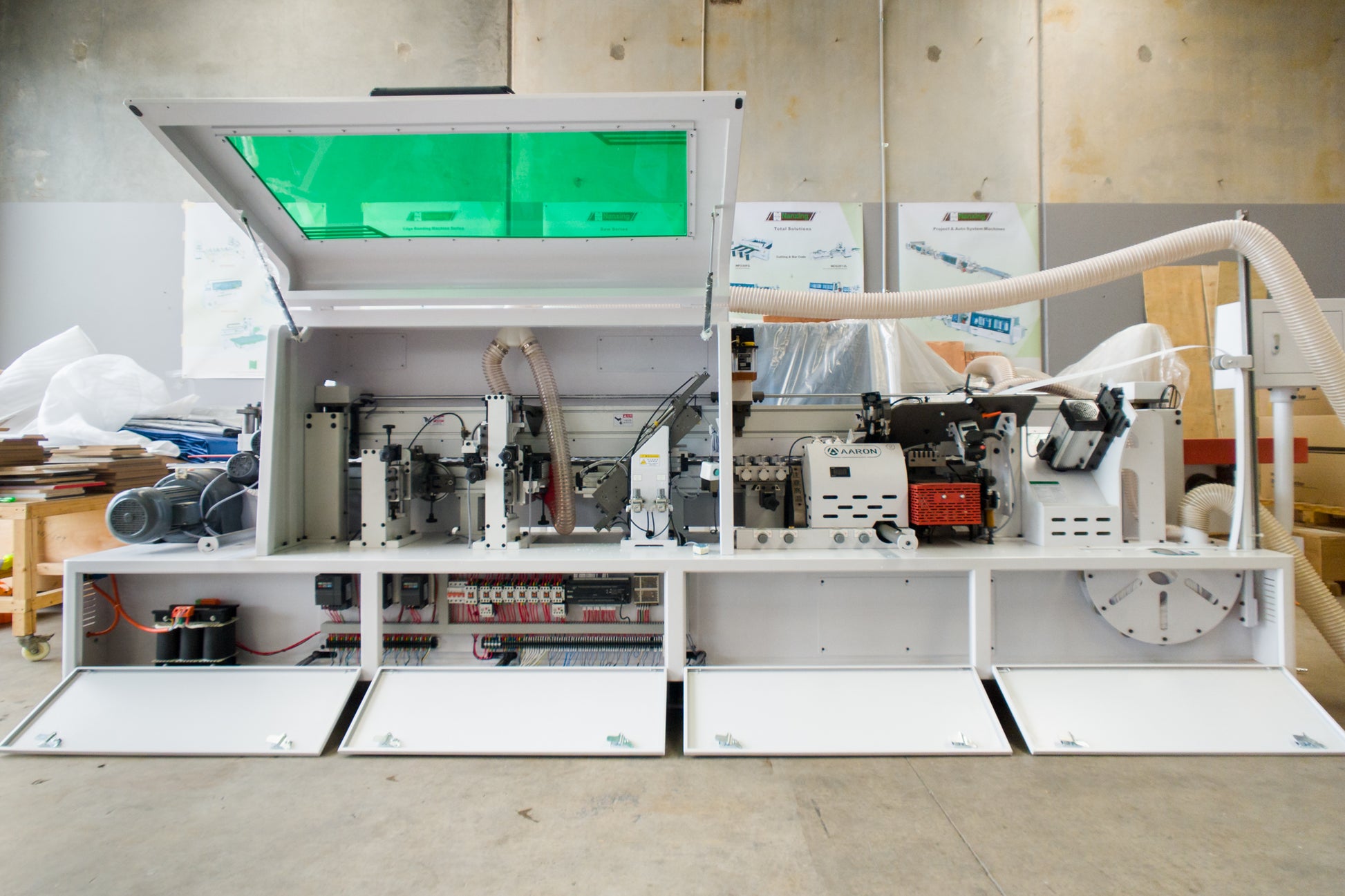

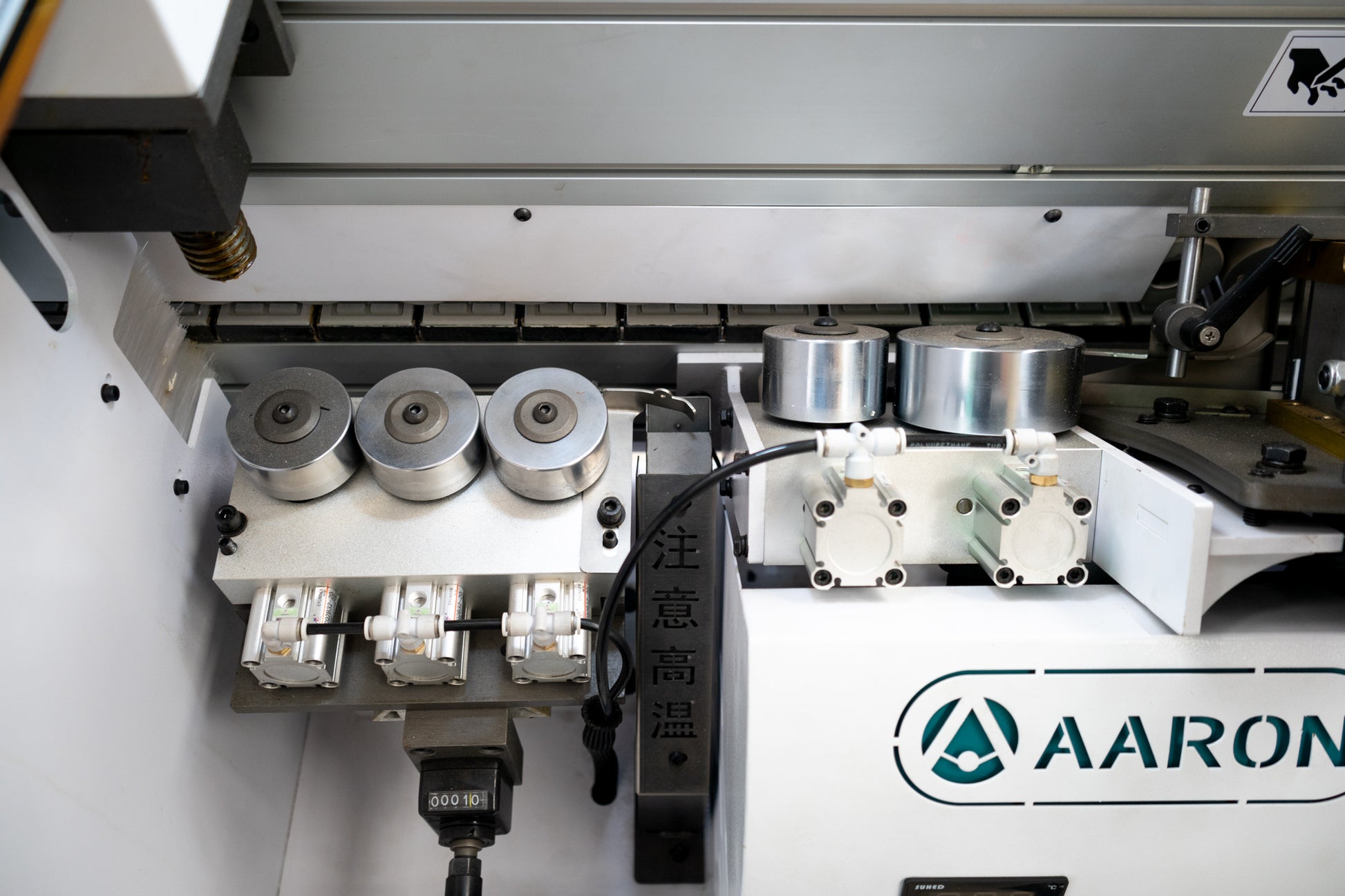

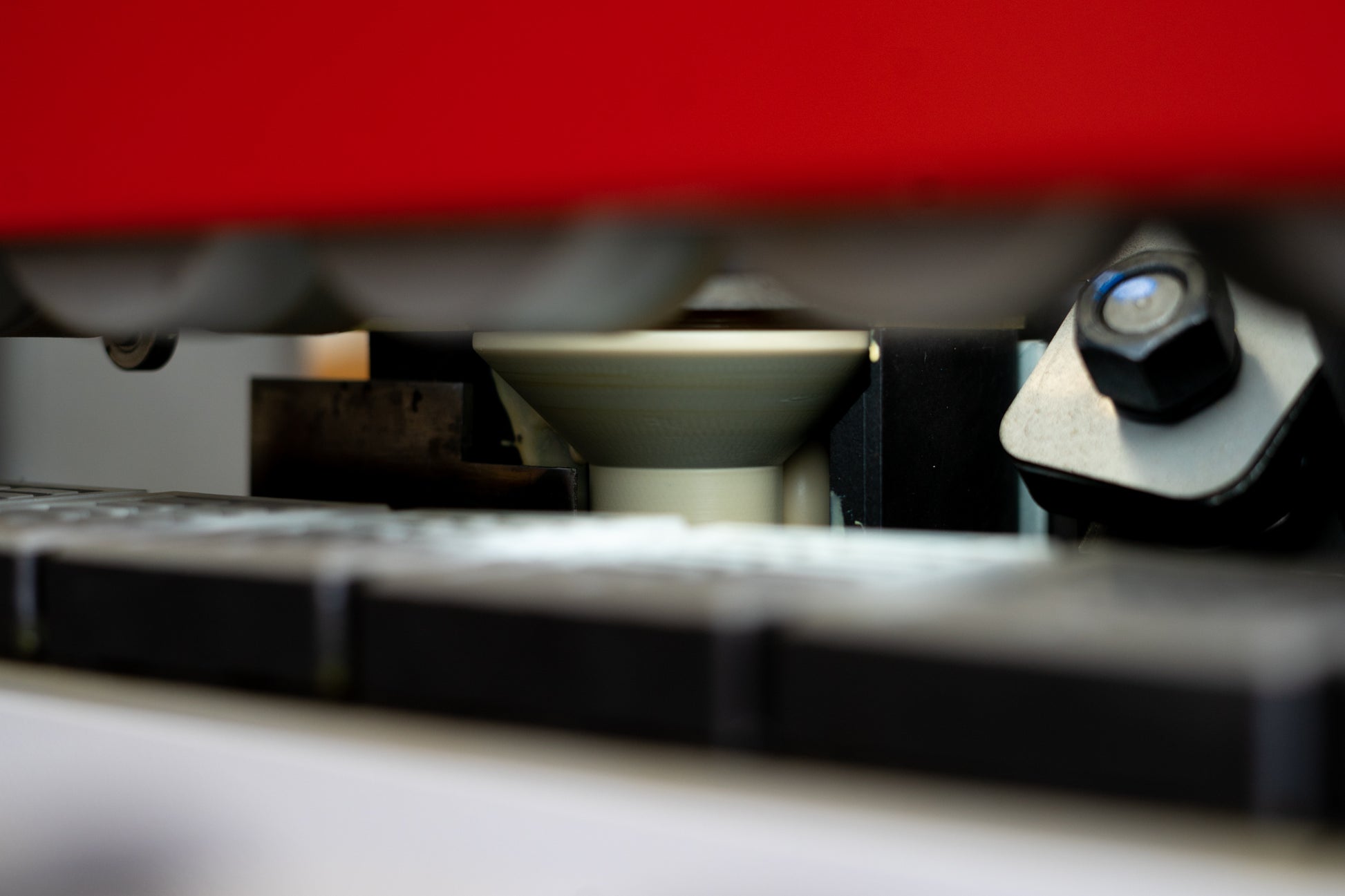

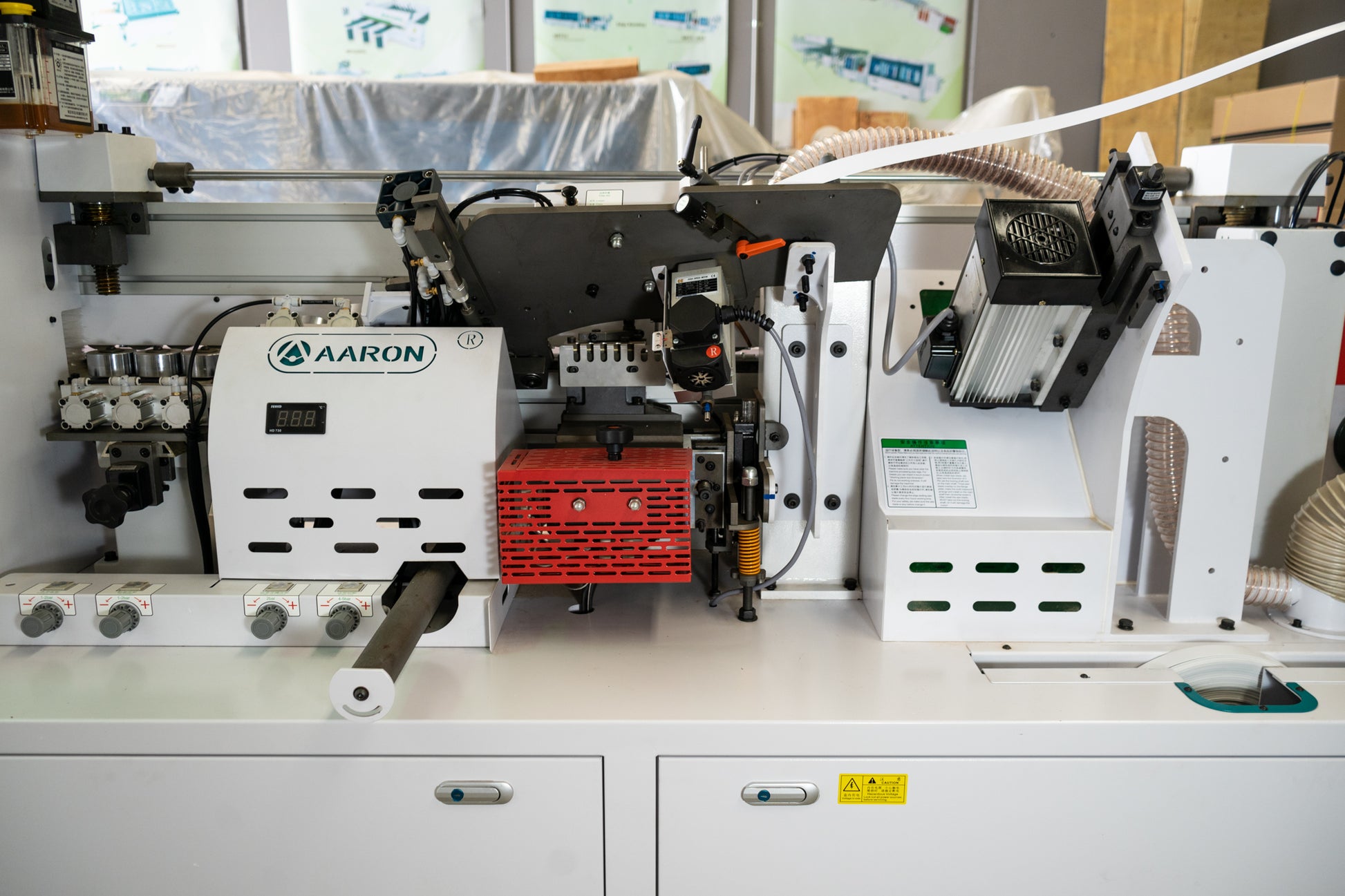

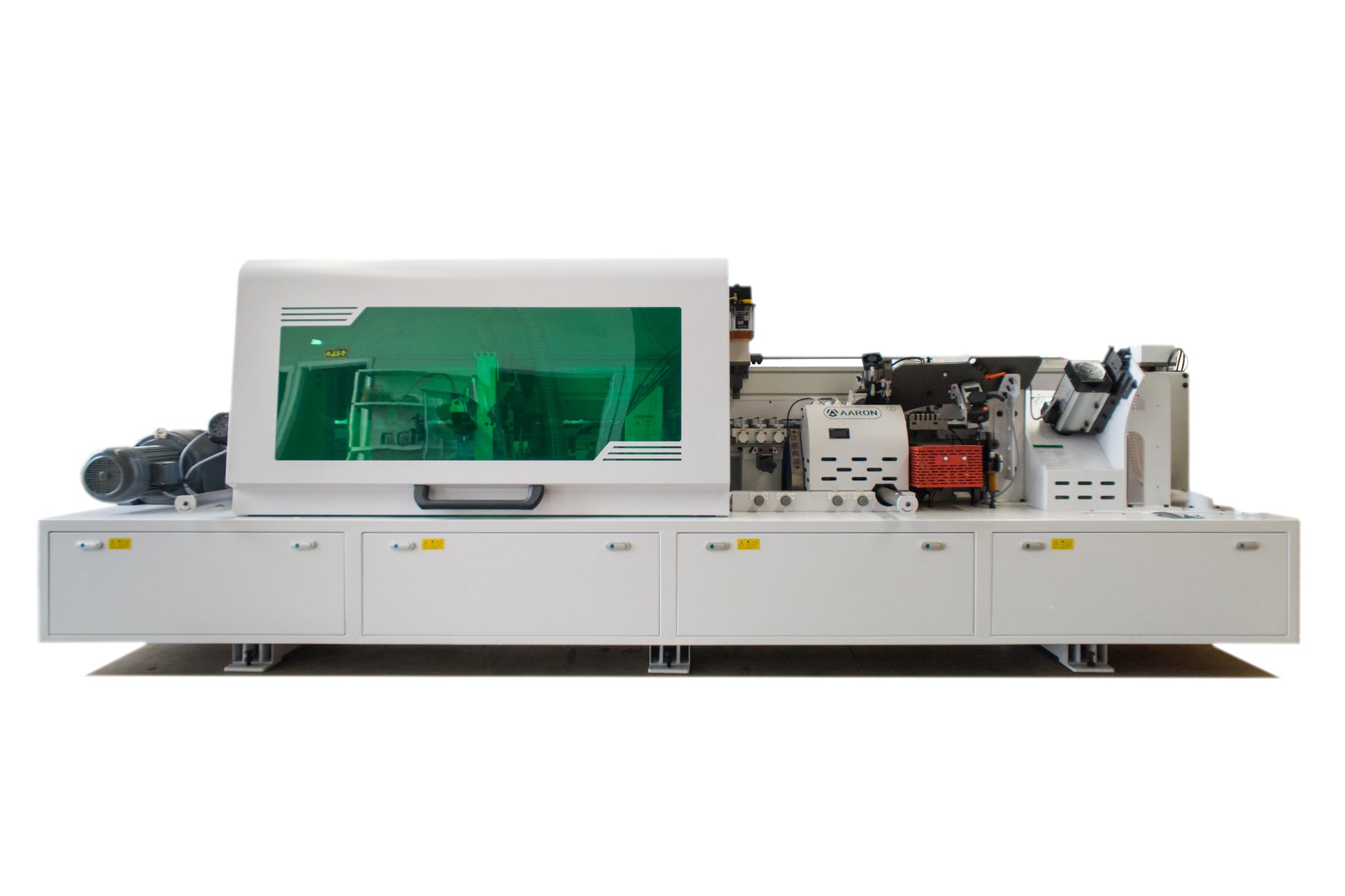

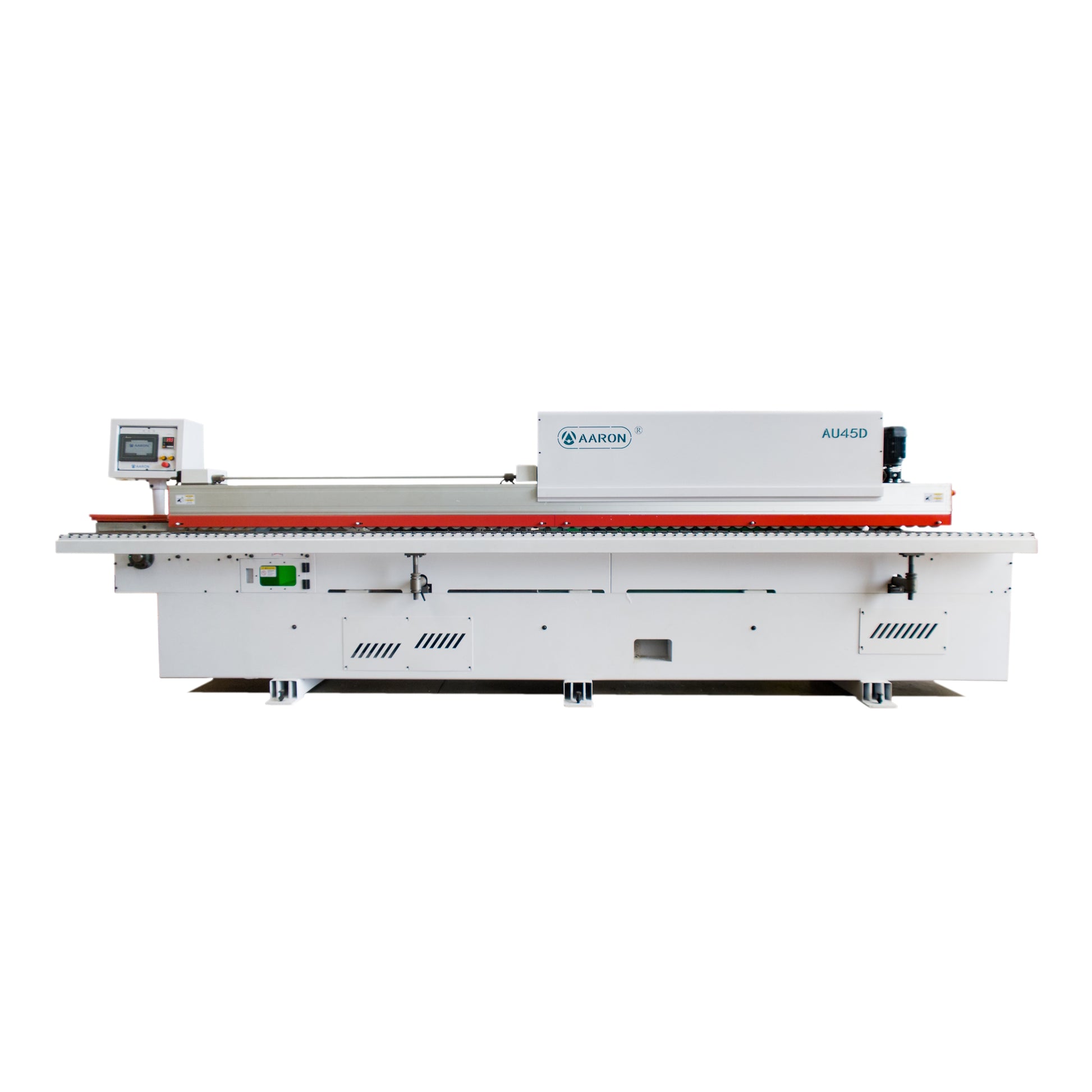

Aaron AU45D - Automatic 45° Edgebander

Aaron AU45D - Automatic 45° Edgebander

Regular price $42,900.00 AUD
Regular price $49,500.00 AUD Sale price $42,900.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Click Here to Enquire

In stock. Delivering nationwide.

Watch a demo while we provide our 45° edgebanding service.

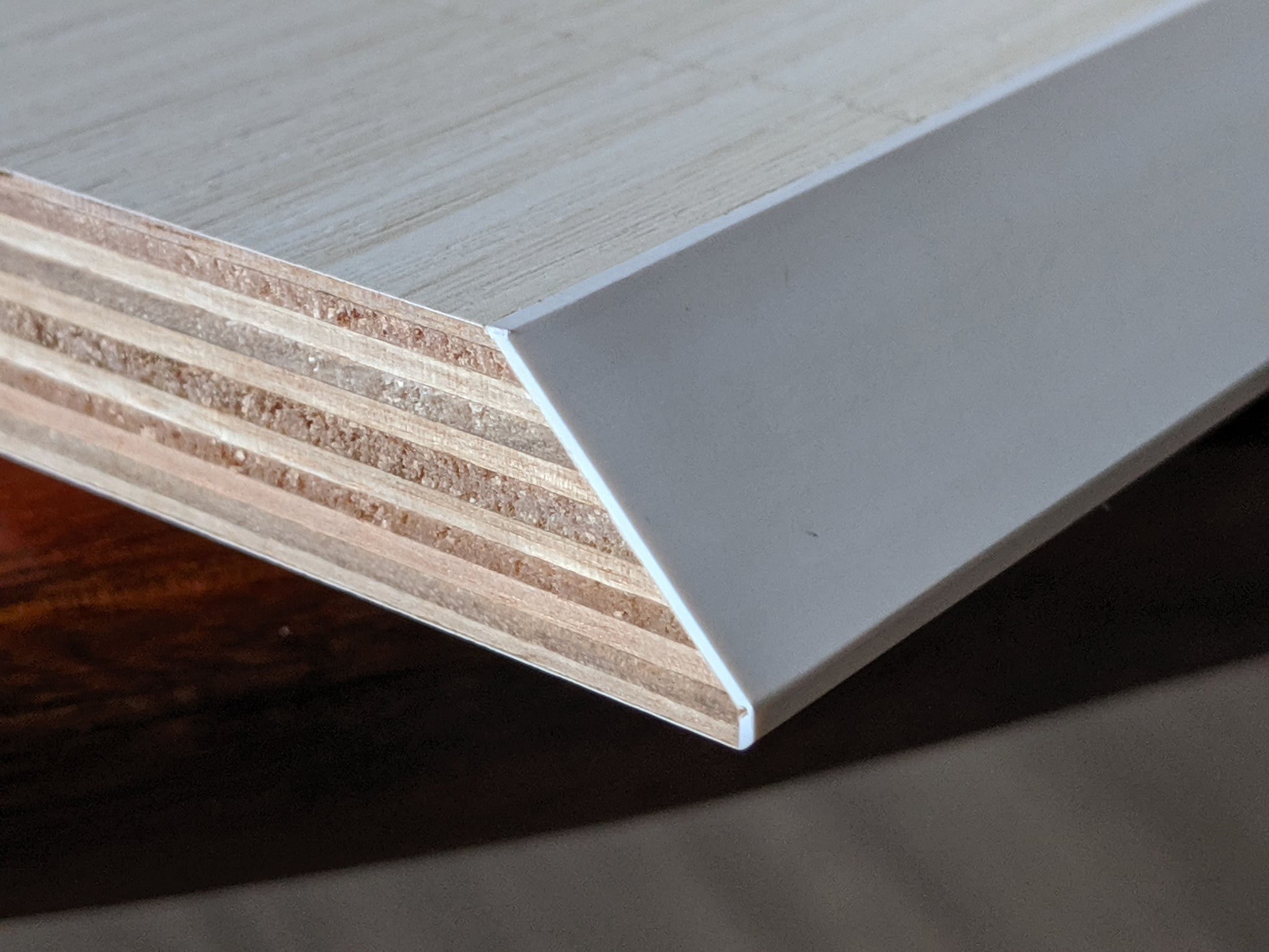

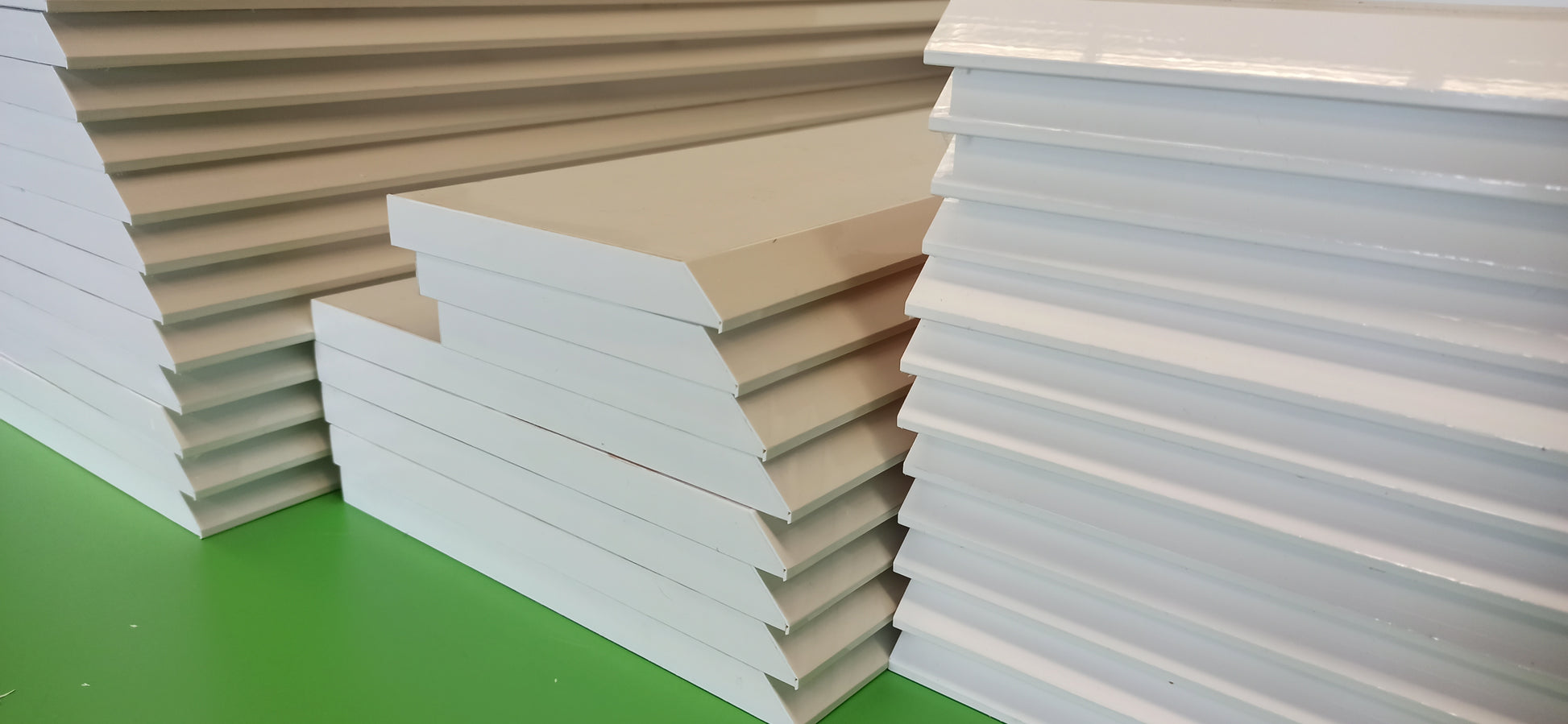

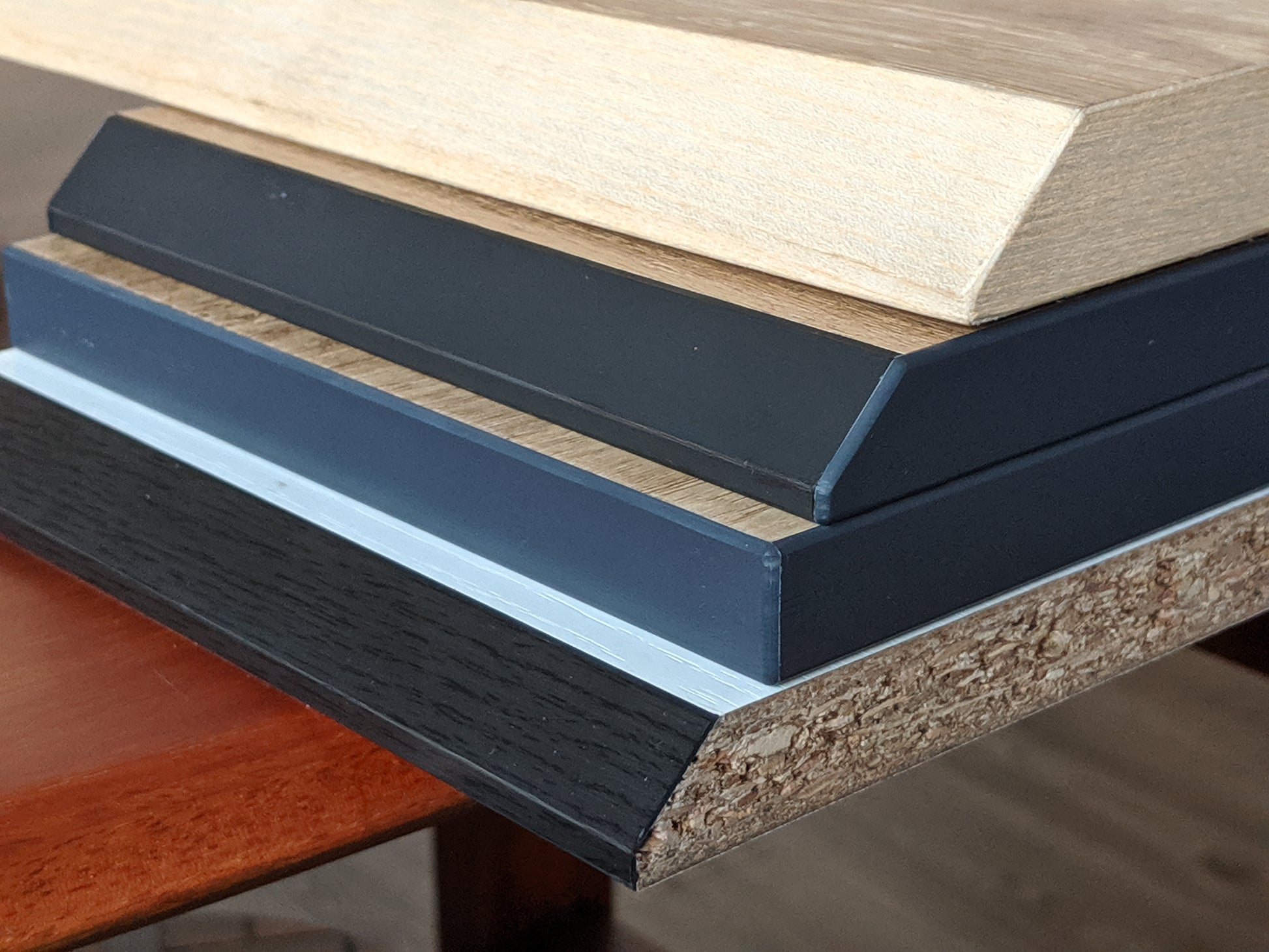

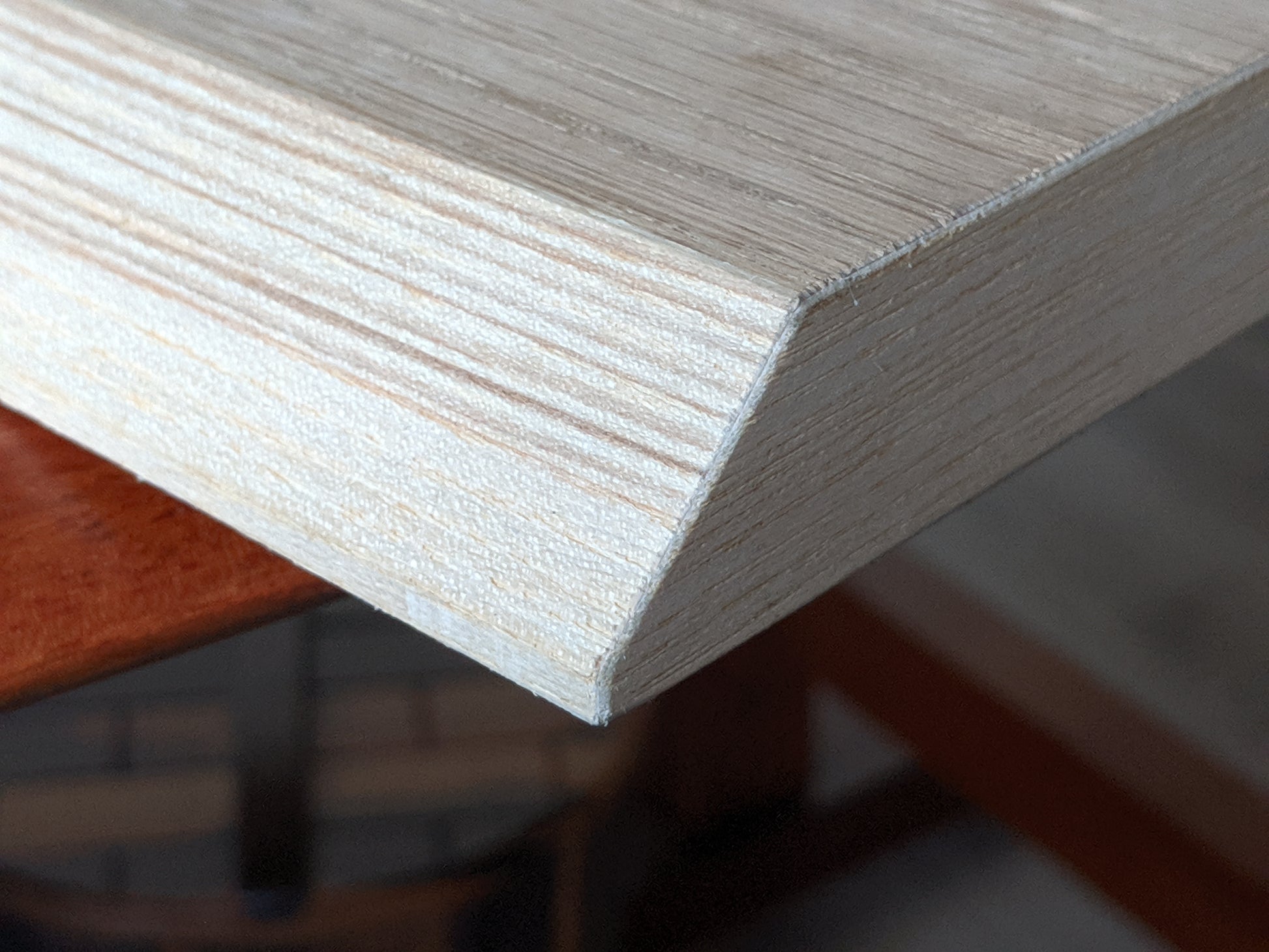

The Aaron AU45D provides an automatic edgebanding and end trimming solution for 45° inclined edges in one easy-to-use machine. Create modern, handle-free doors and drawers efficiently and with repeatability with the AU45D.

With the convenience of a single glue pot and without the need for an external edge tape magazine, the AU45D provides a complete package in a space-optimised machine that is simple to adjust, tune and maintain. This is the perfect machine for handle-less, no-ware kitchen designs.

Operations:

  • Gluing
  • 45-degree milling
  • Fine trimming
  • End trimming
  • Scraping

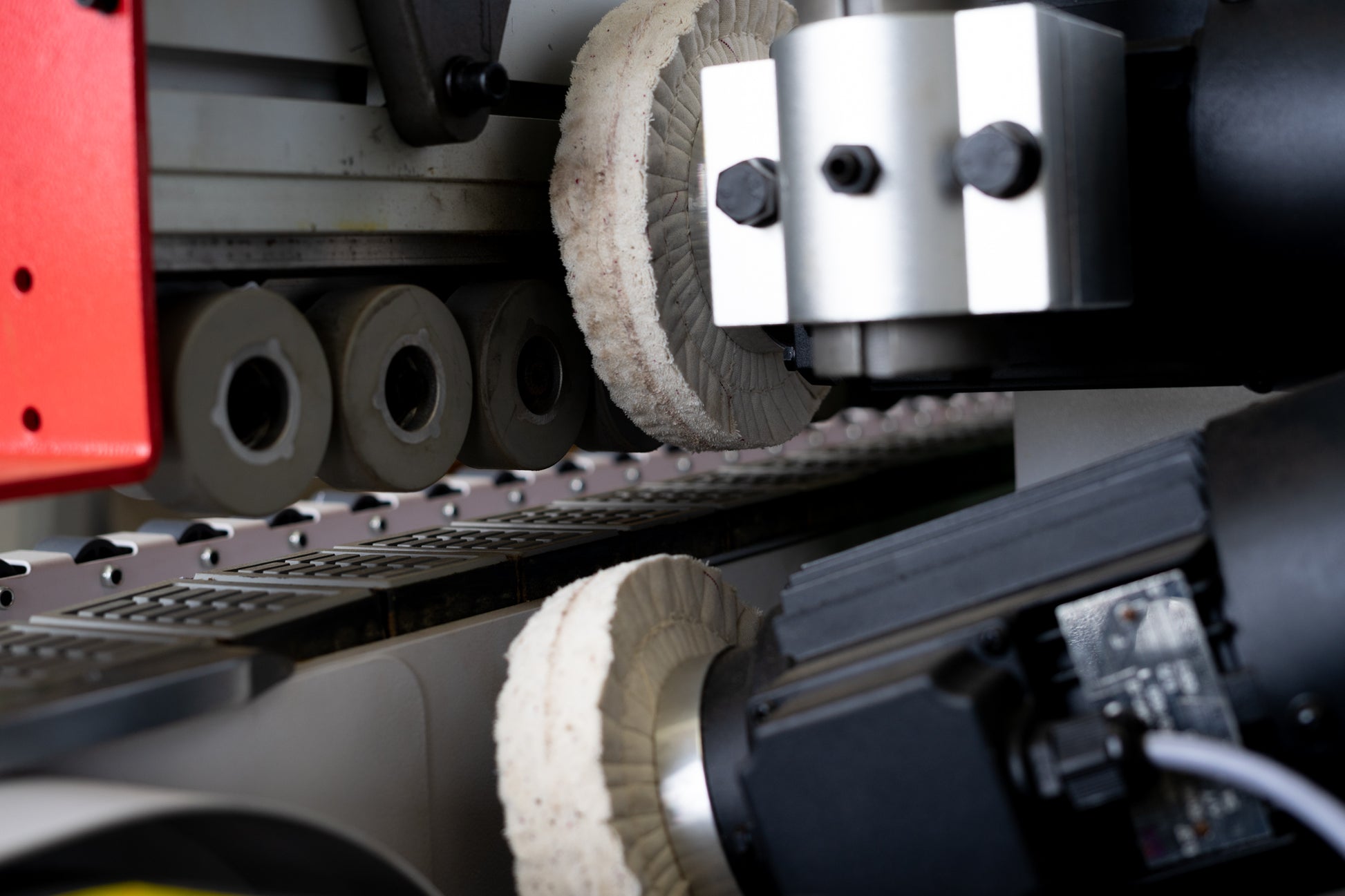

  • Buffing

 Specifications

Model Aaron AU45D
Panel Length ≥200 mm
Panel Width ≥120 mm
Panel Thickness 12 - 25 mm
Edge Tape Thickness 0.8 - 1.5 mm
Feed Speed 13 m/min
Total Power 13 kW
Air Pressure 0.65 MPa
Weight 1,500 kg
Dimensions 4900 x 900 x 1600 mm
